General Description

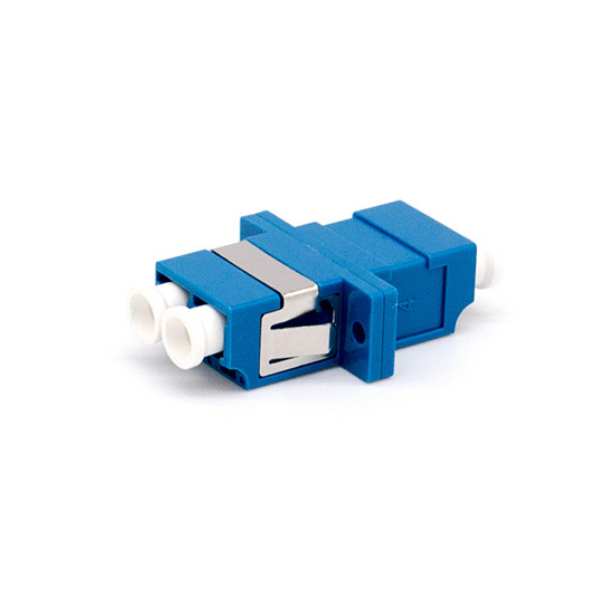

The LC duplex fiber optic adapter consists of a molded polymer body that contains zirconia ceramic sleeve which provides precision alignment to mate with the LC fiber optic connector. It is deployed when the LC type connection interface is required supporting two optical ports with each adapter.


Basic Construction

LC Duplex Fiber Optic Adapter


Specifications

Stabile Performance: < 0.2dB typical MM, < 0.15dB typical SM

Operating Temperature: -40ºC ~ 75ºC

Storage Temperature: -40ºC ~ 85ºC

Alignment Sleeve: Zirconia Ceramic

Style: Flanged/Duplex

Durability: 500 matings

نشر المنتجات

معلومات إضافية

Product Type

Singlemode Duplex Adapter, Blue (Package of 25 pieces)", "Multimode Duplex Adapter, Beige (Package of 25 pieces)", "APC Singlemode Duplex Adapter, Green (Package of 25 pieces)
